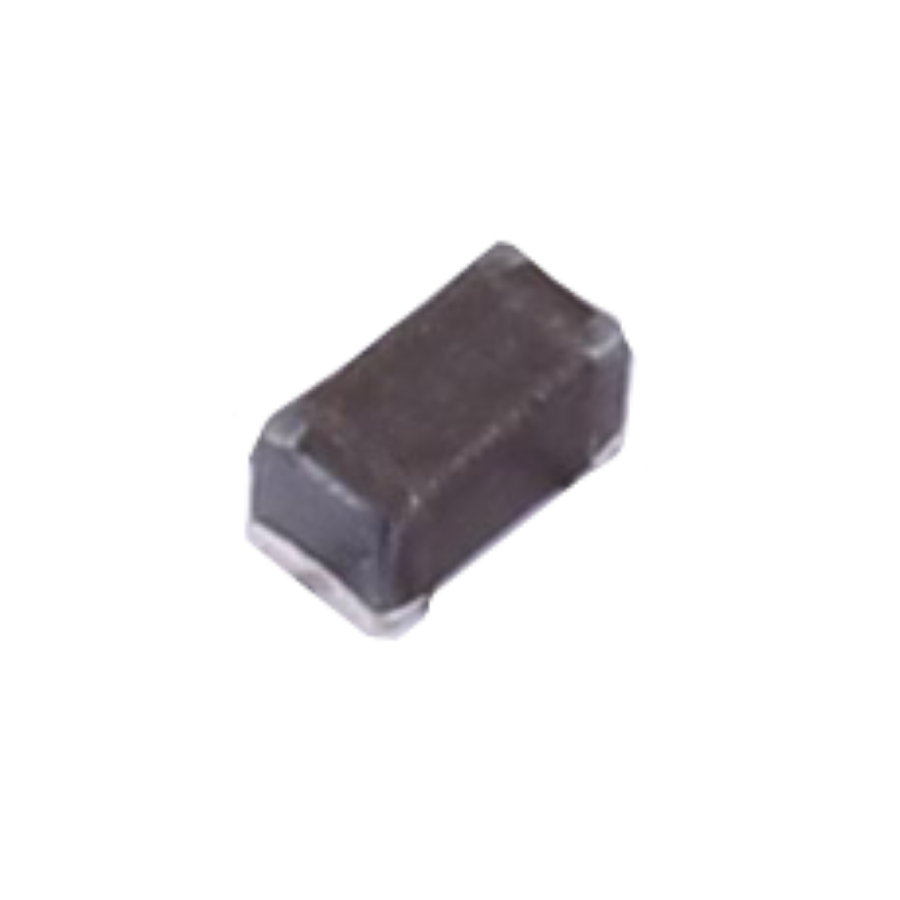

MBKK2012T2R2M
Manufacturer:
Taiyo Yuden
Mfr.Part #:
MBKK2012T2R2M
Datasheet:
Description:
Fixed Inductors 0805(2012 Metric) SMD/SMT 2.2 µH 20 % 850 mA 290 mΩ
| Parameter | Value |
|---|---|
| Tolerance | 20 % |
| Height - Seated (Max) | 1 mm |
| Length | 2.0066 mm |
| Width | 1.25 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Composition(Kit Type) | Wirewound |
| Height | 1 mm |
| Packaging | Reel |
| Depth | 1.25 mm |
| RoHS | Compliant |
| Weight | 5.5 g |
| Type | Wirewound |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 290 mΩ |
| Test Frequency | 1 MHz |
| Shielding | Shielded |
| Inductance | 2.2 µH |
| Core Material | Composite, Metal |
| Max DC Current | 850 mA |
| Saturation Current | 900 mA |
| Max Saturation Current | 900 mA |
| Max Temperature Rise Current | 850 mA |
| Temperature Rise Current | 950 mA |
| Max Length | 2.2 mm |
| Max Width | 1.45 mm |
| Min Length | 1.8 mm |
| Min Width | 1.05 mm |
Stock: 17384
Distributors
pcbx
pcbxUnit Price$0.08720
Ext.Price$0.08720
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.08720 | $0.08720 |
| 10 | $0.07259 | $0.72590 |
| 50 | $0.06605 | $3.30250 |
| 100 | $0.06010 | $6.01000 |
| 500 | $0.05450 | $27.25000 |
| 1000 | $0.04942 | $49.42000 |
| 3000 | $0.04318 | $129.54000 |
| 5000 | $0.03753 | $187.65000 |
